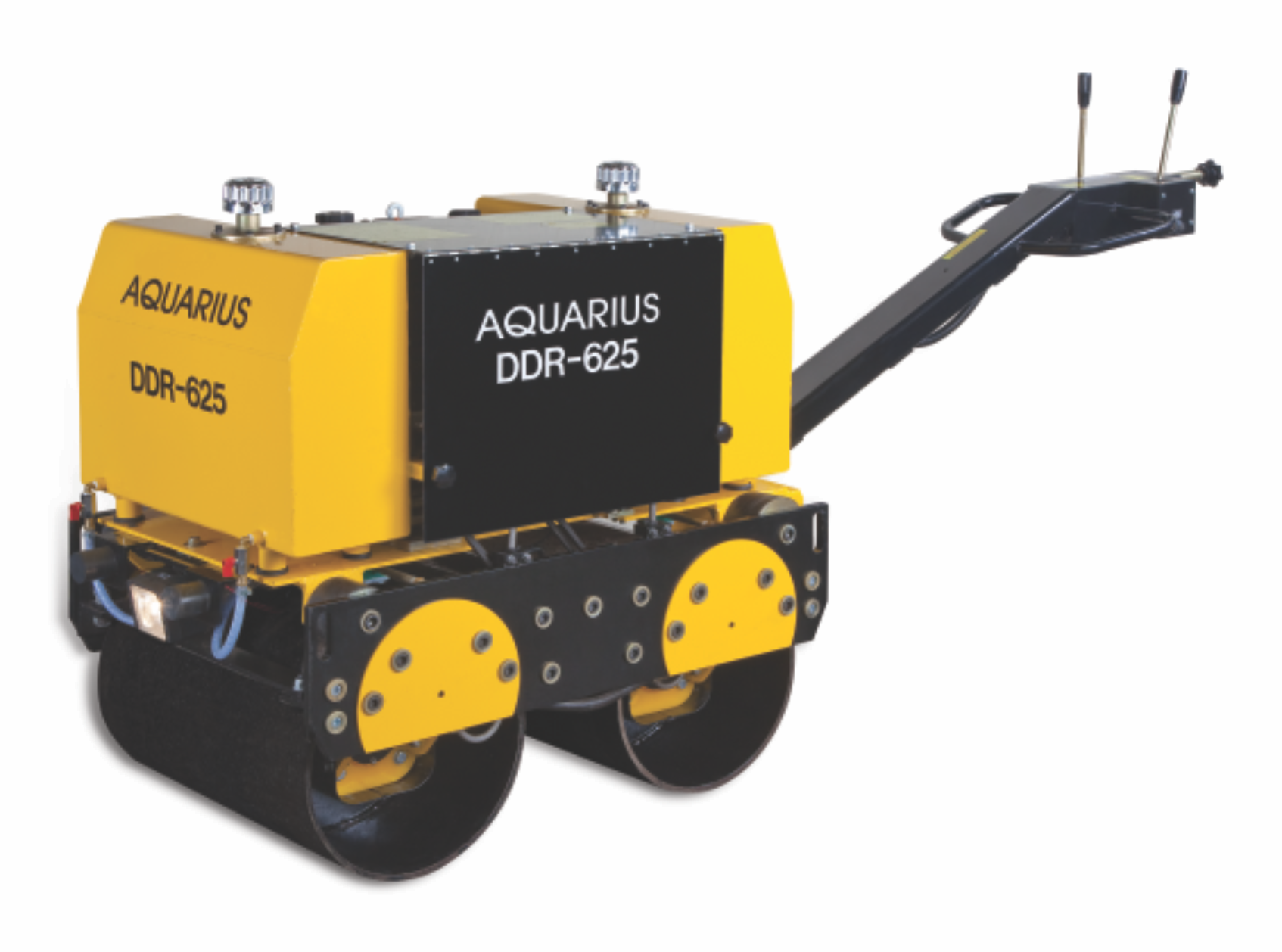

Vibratory Twin Drum Roller DDR 625
- For soil and asphalt application
- Electric start
- Hydraulic drive for forword / reverse movement
- Water sprinklers bars on drums
- Compacts within 2 (51 mm.) from wall
- Centrifugal force 13 kN
Technical Data
| 1 | Engine | Lambardini 15 LD 440 |
|---|---|---|
| 2 | Horsepower | 10 @ 3000 rpm. |
| 3 | Drum width | 625 mm |
| 4 | Drum diameter | 406 mm |
| 5 | Gradability | 20 degress |
| 6 | Vibtation frequency | 3300 VPM |
| 7 | Area coverage | 2500 sq.m. |
| 8 | Operation weight | 750 kg |
| 9 | Working speed | Upto 4 kms / hour |
| 10 | Dimensions | L 2670 X W 720 X H 1160 mm |
