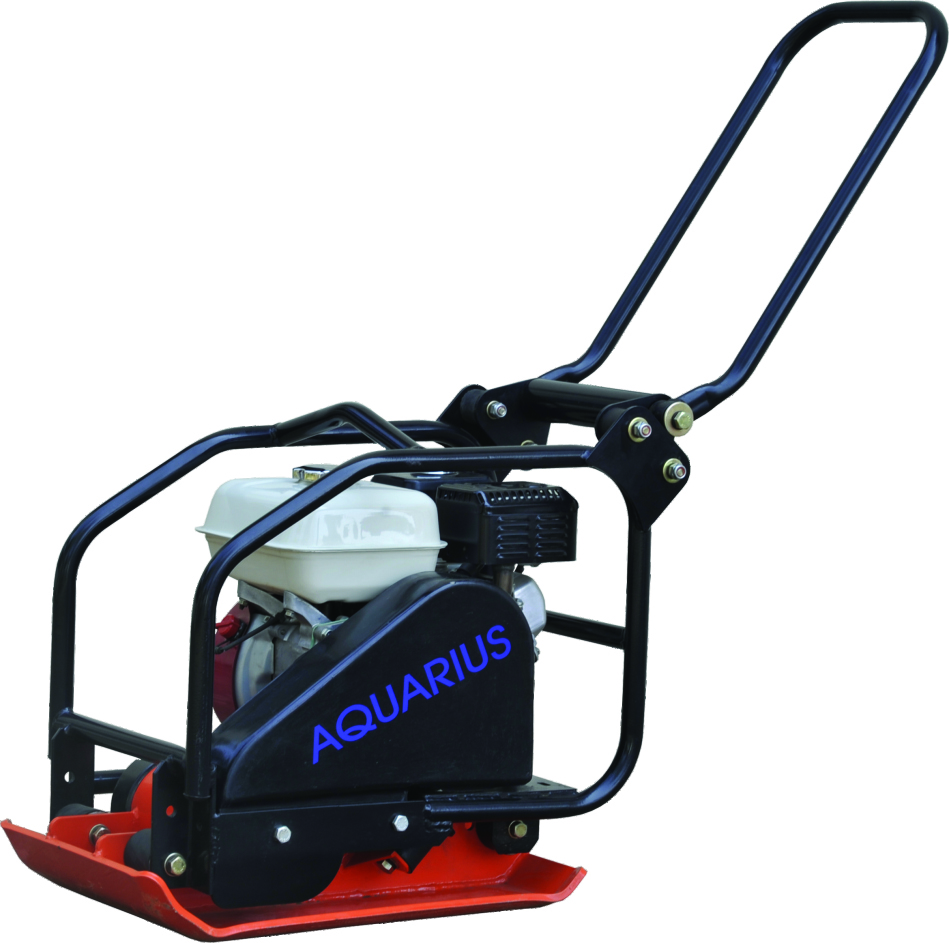

Aquarius Plate compactor KM 70 PK is a lightweight compactor powered by a Honda engine.
- Minimum hand arm vibrations due to unique design of dampers.
- Suitable for light duty application on asphalt, granular soil and sand.
- With polyurethane pad on the base plate, can be used for fixing paver blocks.
- Foldable handle reduces the transport volume.
- Features Centrifugal clutch and recoil starter.
- Choice of 14", 16", 18" wide base plate.
Technical Data
| 1 | Engine | Honda (petrol) Model GK 200 |
|---|---|---|
| 2 | Power | 4.8 HP@3600 rpm / 5.5 Hp@3600 rpm |
| 3 | Frequency | 80hz (4800 Vibrations/min.) |
| 4 | Base Plate Length | 560 mm |
| 5 | Thickness of Base Plate | 8 mm. |
| 6 | Weight | 63 kgs. / 66 kgs. / 69 kgs. |
| 7 | Centrifugal Force | 4 kN to 1.5 Ton/sq.Mtr. ) |
| 6 | Area Coverage | 125 Sq. mtrs/hour. |
| 6 | Travel Speed | 20 Mtrs./min. |
