Plate Compactor Type KM160 is particularly suitable for application like compacting loose gravel and sand on footpaths, sub-grade for concrete floors, trenches, column footings & for small repair works like pot-hole repairs.

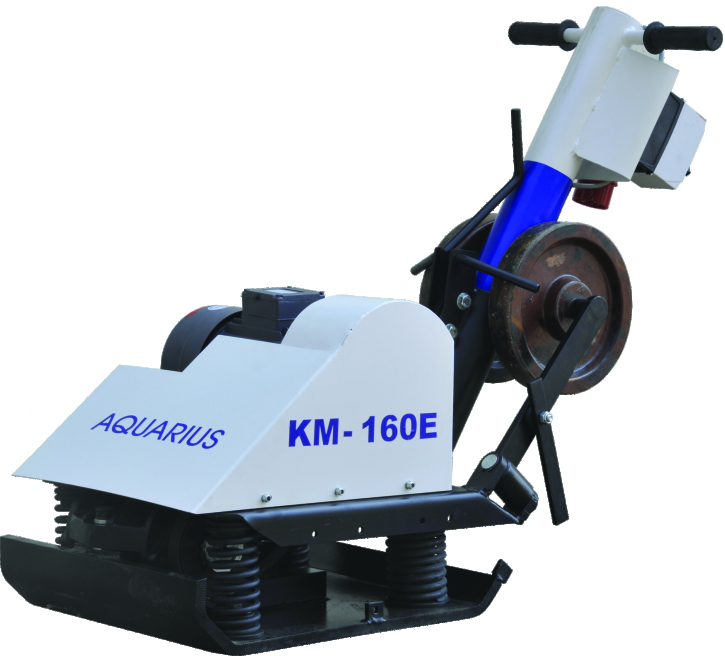

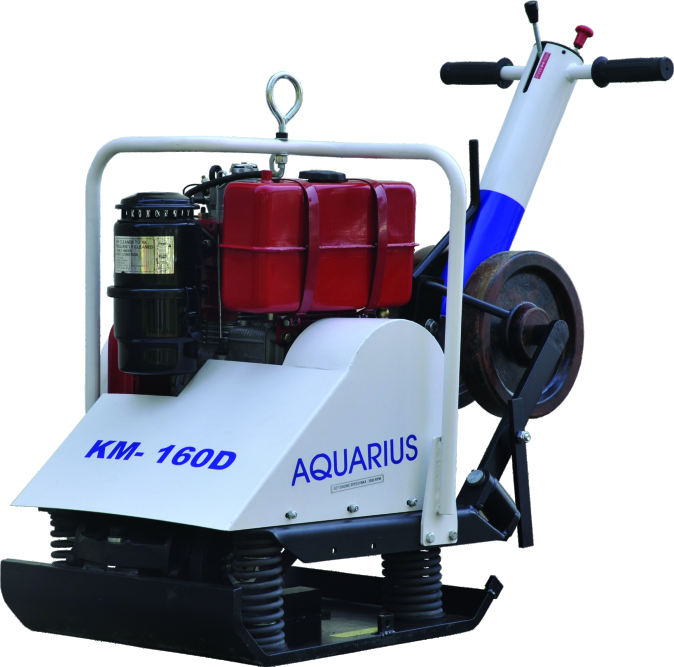

- Available in two versions. Diesel and Electric.
- Working speed 20m/min.
- Effective compaction depth 25cm. depending on material to be compacted.
- Permanently greased vibrator element.
- Heavy duty folding wheels for in-site movement.
- Centrifugal clutch allows easy start of engine on no-load condition.
- Conveniently located controls.
- 16mm thick heavy-duty bottom plate.
- Adjustable handle length.
- Heavy-duty coil springs and rubber dampers ensure minimum vibrations reaching engine and handle.
Technical Data
KM 160
| 1 | Diesel Engine | Greaves 1520 4.4 HP |
|---|---|---|
| 2 | Electric Motor | 3 HP, 3 Phase, 415V, 50 Hz. |
| 3 | Frequency | 75 Hz. (4500 vibr. / min.) |
| 4 | Centrifugal Force | 16 kN.(equivalent to 8 tons / m square ) |
| 5 | Width | 440 mm. |
| 6 | Height | 880 mm. |
| 7 | Working Surface Of Base Plate | 450 x 440 mm. |
| 8 | Thickness Of Base Plate | 16 mm. |
| 9 | Weight | 160 kg. (Diesel) / 145 kg. (Electric) |
| 10 | Area Coverage | 125 sq. mtrs. / hour (with 4 passes) |
| 11 | Travel Speed | 20 mtrs. / min. |
