SPIDERSCREED

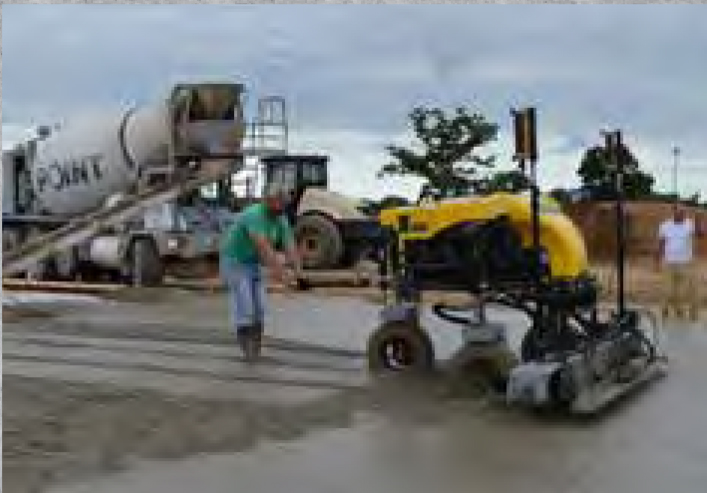

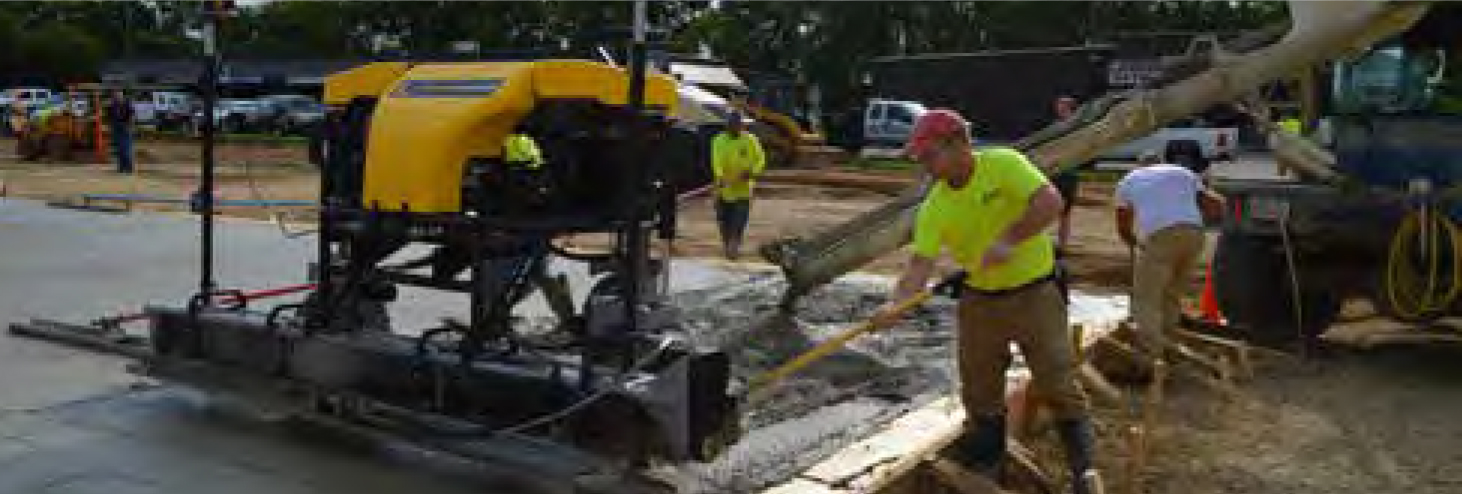

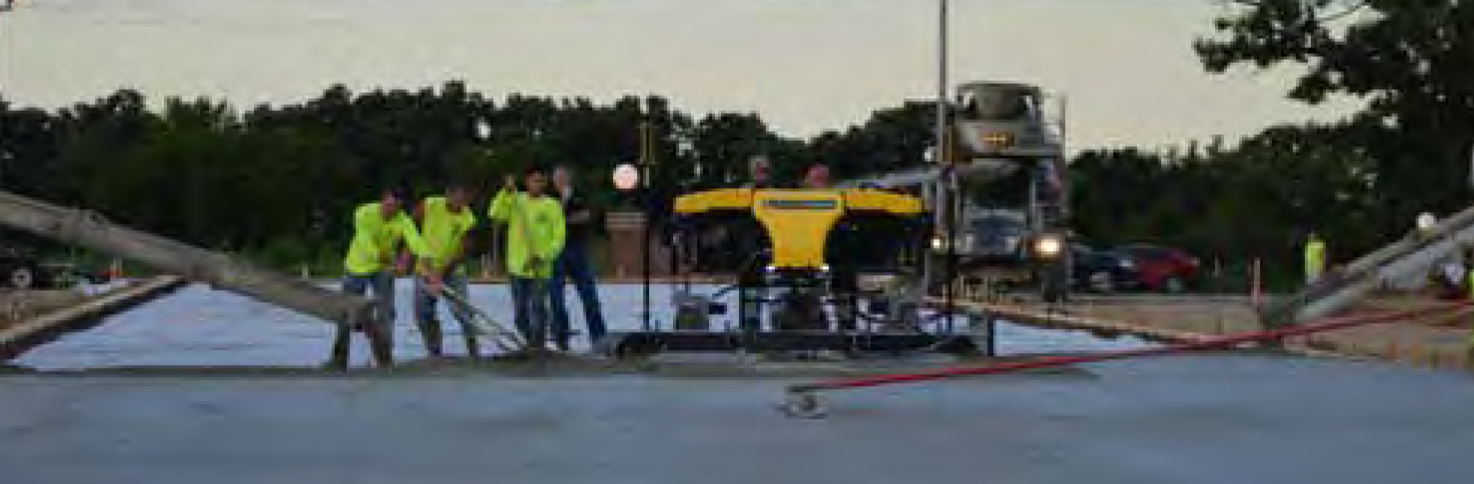

SPIDERSCREED™ Series – a compact, lightweight and maneuverable drive-in system designed for upper deck concrete and slab-ongrade screeding applications. Weighing in at just 1,280 lbs. (581 kg), the SPIDERSCREED is lightweight and powerful, featuring a 100% TIG welded tubular aluminum chassis. Its patent-pending VERSA-DRIVE™ system, independent zero turn drive, up to 90° horizontal drive, and lateral drive. The SPIDERSCREED features the Ligchine patented machine leveling system to ensure flat floors with great compaction.
- Leveling System : Automatic laser leveling (2 Topcon LS-B110 receiver eyes included).

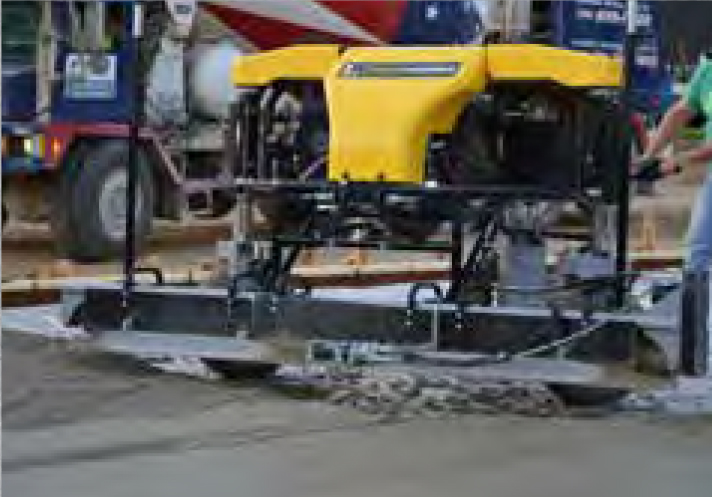

- Screed Head : The SPIDERSCREED features a 10’ auger in the screed. A roller head is also available as an option.
- Drive System : : Independent hydraulic front wheel drive with zero-turn.
- Steering System : Wheels linked together in unison achieving zero-turn, parallel, and lateral steering/drive motions.
- Electronics : Eaton keypad for operator controls.
- Boom Reach : 12’ 5” (3.8m).
Technical Data
| 1 | Engine Size | Honda GX630 (20 hp) Gasoline |
|---|---|---|
| 2 | Machine Size (retracted) | W-4’ 6” (1.4m) x L-10’ 11” (3.3m) x H-4’ 6” (1.4m) |
| 3 | Machine Weight | 2840 lbs. (1,288 kg) |
| 4 | Steering and Drive System (hydraulic) | Independent front wheel drive |
| 5 | Zero Turn Capable | Yes |
| 6 | Parallel to the Pour Driving Capable | No |
| 7 | Machine Operation Control | 100% Wireless Remote Control |
| 8 | Coverage per screed pass (no overlap) | 130 sq. ft. (12.1 m square) |
| 9 | Standard Screed Head Width | 10’ 5” (3.8 m) |
| 10 | Boom Reach | 12’ 5” (5.5 m) |
| 11 | Transport with Pickup Truck and Trailer | Yes |
| 12 | Alternate Screed Head Options | High Performance, Paver, Pervious, Various Widths |
| 13 | Grade/Slope/Dual Slope control (standard) | Trimble® LR30 Eyes (included) |
| 14 | Contoured Slope 3D capable (optional) | Topcon 3D mmGPS Satellite control or LPS Robotic |
| 15 | Diagnostic Feedback | Hydraulic/Electrical LCD Display |
