SCREEDSAVER II

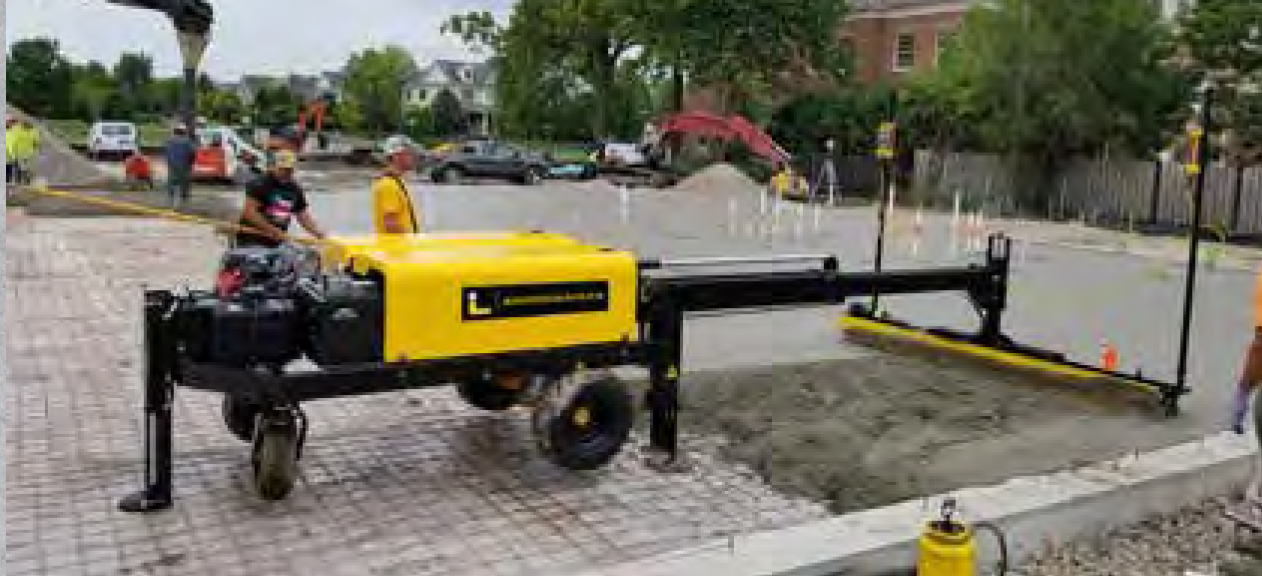

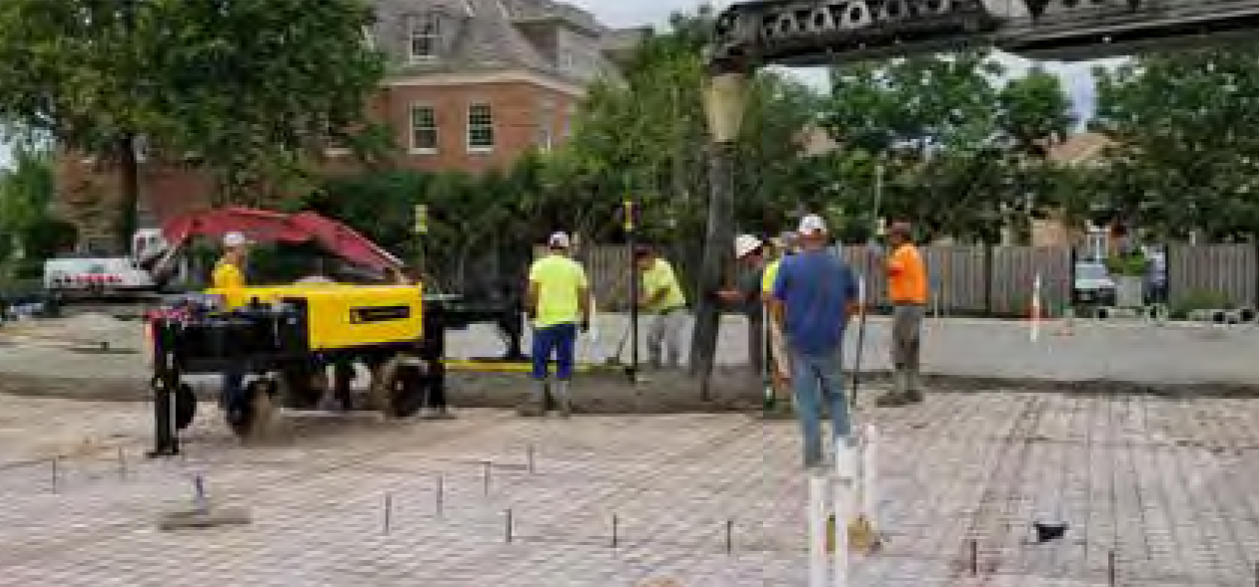

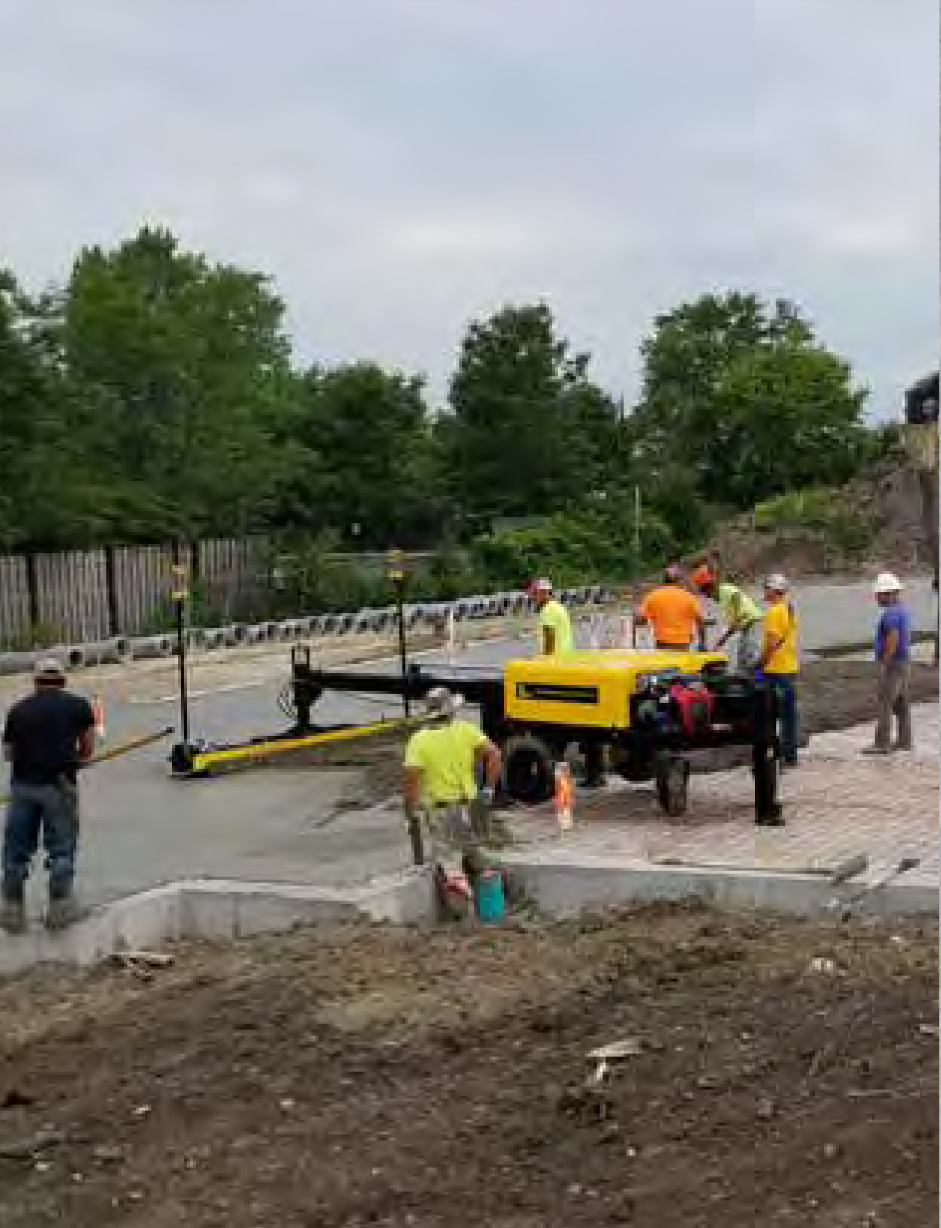

SCREEDSAVER II™ machine in 2008 as the world’s most competitively priced boom-operated screed ever offered to the industry. SCREEDSAVER II includes a zero-turn drive system (independent hydraulic front wheel drive) making it the perfect companion for cut-up jobsites and spaces that no other boom screed would attempt to complete.
- Engine : Honda 20 hp gas engine
- Operation : The wireless remote-controlled SCREEDSAVER II achieves world class FF/FL numbers that only a stationary boom operated screed can reliably produce.
- Screed Head Length : Standard 10.5’ (3.2m) screed head provides 130 sq. ft (12.1m²) screeding coverage per pass.
- Screed Coverage : Up to 3,000 sq. ft./hour (278 m²) or more depending upon site variables.
- Drive System : Independent hydraulic front-wheel drive.
- Boom Reach : 12’ 5” (3.8m).
Technical Data
| 1 | Engine Size | Honda GX630 (20 hp) Gasoline |
|---|---|---|
| 2 | Machine Size (retracted) | W-4’ 6” (1.4m) x L-10’ 11” (3.3m) x H-4’ 6” (1.4m) |
| 3 | Machine Weight | 2840 lbs. (1,288 kg) |
| 4 | Steering and Drive System (hydraulic) | Independent front wheel drive |
| 5 | Zero Turn Capable | Yes |
| 6 | Parallel to the Pour Driving Capable | No |
| 7 | Machine Operation Control | 100% Wireless Remote Control |
| 8 | Coverage per screed pass (no overlap) | 130 sq. ft. (12.1 m square) |
| 9 | Standard Screed Head Width | 10’ 5” (3.8 m) |
| 10 | Boom Reach | 12’ 5” (5.5 m) |
| 11 | Transport with Pickup Truck and Trailer | Yes |
| 12 | Alternate Screed Head Options | High Performance, Paver, Pervious, Various Widths |
| 13 | Grade/Slope/Dual Slope control (standard) | Trimble® LR30 Eyes (included) |
| 14 | Contoured Slope 3D capable (optional) | Topcon 3D mmGPS Satellite control or LPS Robotic |
| 15 | Diagnostic Feedback | Hydraulic/Electrical LCD Display |
