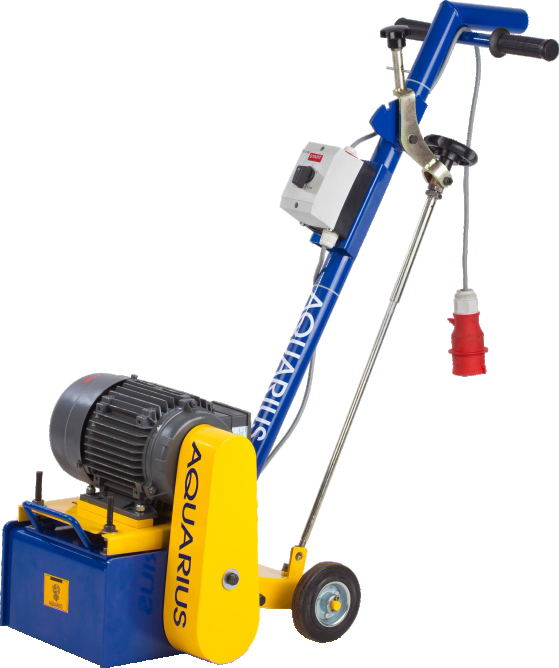

Concrete Surface Scarifier ATE 20

The concrete surface Scarifiers from Von Arx AG, Switzerland are extremely useful machines for wide range of applications.


  • Loosely fitted cutters on drum produce heavy impact on surface, thus removing top layer.
  • Different types of cutters are available to suit different applications.
  • Wide range of applications.
  • Providing skid-free texture on concrete road / bridge wearing course.
  • Profile correction on concrete pavements.
  • Providing a mechanical key on industrial floors to ensure proper bonding between the base concrete floor and the synthetic overlay.



Techinical Data
1 Dimensions L X W X H 1100 X 460 X 880 mm.
2 Working width 200 mm.
3 Distance to wall 95 mm.
4 Weight 55 kg.
5 Electrical power 3 phase 415 V, 2.2 kW.
6 No. of pentagonal cutters 76
